Q-G CORD PLUG CONNECTORS AND RECEPTACLES
CONNECTORS & RECEPTACLES
?
FAX: 773 792-2129
* Please visit the product pages on our website for the most up-to-date product information

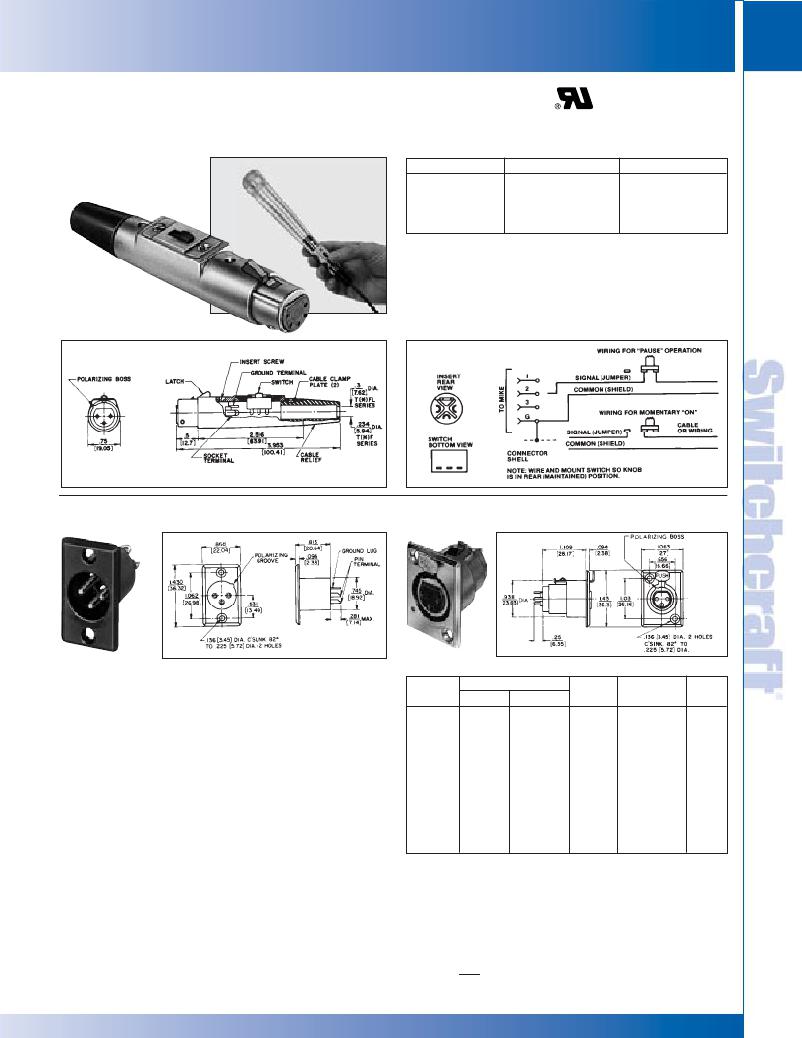

Q-G ? CORD PLUG CONNECTORS AND RECEPTACLES
T(*)F AND T(*)FM CORD PLUG WITH ON-OFF SWITCH
9
Part Number
? T3F
? T3FM
? T4F
? T4FM
Part Number
? T3FL
? T3FLM
? T4FL
? T4FLM
Insert Contacts
3
3
4
4
T(*)F Straight female cord plug with DPDT (2-C) locking
on-off switch; standard latchlock.
T(*)FM Straight female cord plug with SPDT (1-C)
momentary on-off switch; standard latchlock.
Slide switches rated 500 mA, 125V (AC or DC). Mounting
screws are supplied.
D(*)M, D(*)F AND D(*)FD RECEPTACLES
Studio quality black and gold Q-G ? receptacle with black
housing and gold contacts is designed for low/stable contact
resistance and withstands corrosion where highest quality is
required for recording and broadcast studio equipment,
consoles, and other applications.
Nickel
Finish
D3M
D4M
Black Finish
Silver Gold
D3MB D3MBAU
D4MB D4MBAU
Detent
—
—
QGP Series 1
QGP363
—
Pins
3
4
D(*)M SERIES – Male receptacle for panel or chassis
mounting. Special rectangular flange permits close spacing on
crowded panels, has two .136" (3.45mm) diameter
countersunk holes for #5-40 flat head mounting screws (not
supplied). Mounts from front of panel or chassis in .766"
(19.45) diameter hole. Satin nickel finish (Series D*M) or black
finish (Series D*MB, or D*MBAU).
D(*)F SERIES – Female receptacle for panel or chassis
D5M
D6M
D7M
D3F
D4F
D5F
D6F
D7F
D5MB
D6MB
D7MB
D3FB
D4FB
D5FB
D6FB
D7FB
D5MBAU
D6MBAU
D7MBAU
D3FBAU
D4FBAU
D5FBAU
D6FBAU
D7FBAU
—
—
—
D3FD
? D3FDB
—
? D6FDB
—
—
—
—
QGP362
—
—
—
—
5
6
7
3
4
5
6
7
mounting. Flange has two .136" (3.45 mm) diameter
countersunk holes for #5-40 flat head mounting screws (not
supplied). Mounts from front of panel or chassis in .953" (24.21
mm) diameter hole. Series D(*)F has standard latchlock; Series
D(*)FD has FAS-DISCONNECT detent. Satin nickel finish
(Series D*F and D*FD) and “Black-Velvet” finish (Series
D*FBAU).
* Number of insert contact or pins must be specified to complete part number.
? Available on special order only; contact Switchcraft for price and delivery.
1 Non-reflective gray finish, gold-plated pins.
DIMENSIONS ARE FOR REFERENCE ONLY
Inch
(mm)
SWITCHCRAFT, INC. 5555 N. Elston Ave. ? Chicago, IL 60630
